Phase Margin Transfer Function

Understanding Phase Margin and Transfer Functions

Introduction:

In the realm of control systems engineering, understanding the stability and performance of a system is paramount. One crucial metric used to assess the stability of a closed-loop control system is the phase margin. Closely tied to the phase margin is the system's transfer function, which mathematically describes the system's input-output relationship. This article explores the concept of phase margin within the context of a system's transfer function, explaining its significance and calculation. We'll delve into how the phase margin reveals the system's robustness to variations and potential instability.

1. What is a Transfer Function?

A transfer function is a mathematical representation of a system's response to an input. It's expressed as the ratio of the Laplace transform of the output to the Laplace transform of the input, assuming zero initial conditions. For a linear time-invariant (LTI) system, the transfer function is a function of the complex frequency variable 's'. It encapsulates all the dynamic characteristics of the system, including its gain, poles, and zeros. For example, a simple first-order system might have a transfer function of:

G(s) = K / (τs + 1)

where K is the gain and τ is the time constant. More complex systems have higher-order transfer functions with multiple poles and zeros.

2. Bode Plots and Frequency Response:

Analyzing the frequency response of a system is crucial for determining its phase margin. This is typically done using Bode plots, which graphically represent the magnitude (in decibels) and phase (in degrees) of the transfer function as a function of frequency. The magnitude plot shows the gain at each frequency, while the phase plot illustrates the phase shift introduced by the system at each frequency.

3. Defining Phase Margin:

The phase margin is a measure of how much additional phase lag can be introduced into the system before it becomes unstable. It's determined at the gain crossover frequency (ωgc), which is the frequency where the magnitude of the open-loop transfer function |G(jω)| is equal to 1 (or 0dB). The phase margin (PM) is then calculated as:

PM = 180° + ∠G(jωgc)

where ∠G(jωgc) represents the phase of the open-loop transfer function at the gain crossover frequency. A positive phase margin indicates stability, while a negative phase margin indicates instability. Generally, a phase margin of at least 45° is considered desirable for robust stability and good transient response. A lower phase margin suggests the system is closer to instability and may exhibit undesirable oscillations or overshoots in response to disturbances.

4. Interpreting Phase Margin:

A large phase margin indicates a system that is relatively insensitive to variations in its parameters or the addition of phase lag. For instance, a system with a high phase margin can tolerate more delays in the feedback loop without becoming unstable. Conversely, a small phase margin indicates that the system is sensitive to these variations and is closer to the brink of instability. A negative phase margin signifies that the system is already unstable.

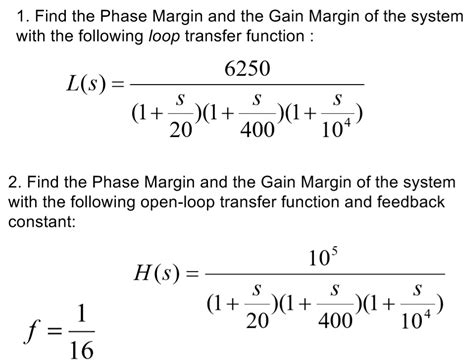

5. Example Scenario:

Consider a second-order system with the following open-loop transfer function:

G(s) = K / (s(s+2))

Using Bode plots or numerical methods, we can find the gain crossover frequency (ωgc) and the phase at that frequency. If, at ωgc, the phase is -135°, the phase margin would be:

PM = 180° + (-135°) = 45°

This indicates a reasonably stable system. However, adding significant delay or other elements that introduce further phase lag could reduce the phase margin below the desirable threshold, potentially leading to instability.

6. Improving Phase Margin:

If a system's phase margin is too low, several techniques can be employed to improve it:

Lead Compensator: A lead compensator is a network that introduces a phase lead at frequencies near the gain crossover frequency, thereby increasing the phase margin.
Lag Compensator: A lag compensator is used to reduce the gain at higher frequencies, which can indirectly improve the phase margin.
Reducing Gain: Simply reducing the overall gain of the system can often increase the phase margin, although it may also affect the system's performance in other aspects.

Summary:

The phase margin, determined from the system's transfer function and its frequency response, is a critical indicator of the stability of a closed-loop control system. Analyzing the Bode plot allows us to easily determine the phase margin at the gain crossover frequency. A sufficient phase margin (typically 45° or higher) ensures robust stability, reducing the sensitivity to parameter variations and external disturbances. Techniques like lead and lag compensation are available to adjust the phase margin when necessary.

FAQs:

1. What does a phase margin of 0° indicate? A phase margin of 0° indicates that the system is marginally stable. It's on the verge of instability, and any small perturbation could cause oscillations or instability.

2. How is phase margin related to damping ratio? While both relate to system stability, phase margin is a frequency-domain measure focusing on the phase shift at the gain crossover frequency, while damping ratio is a time-domain measure describing the decay rate of oscillations in the system's step response.

3. Can a system have a negative phase margin? Yes, a negative phase margin indicates an unstable system. The system will exhibit oscillations that grow in amplitude over time.

4. Why is a higher phase margin generally preferred? A higher phase margin provides a larger safety margin against instability. It makes the system more robust to uncertainties and variations in the system parameters or external disturbances.

5. How do I calculate the phase margin using software tools like MATLAB? MATLAB's Control System Toolbox provides functions like `bode` to generate Bode plots and functions that directly calculate phase margin from the system's transfer function. These tools simplify the process significantly.
