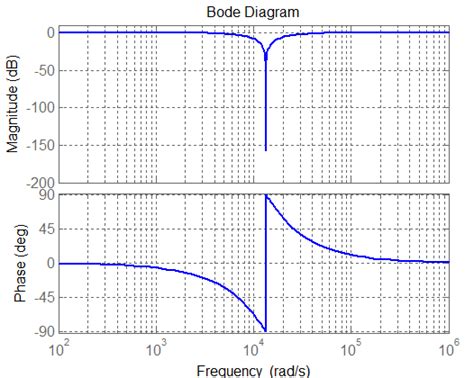

Image related to notch-filter-bode-plot

Decoding the Notch Filter Bode Plot: A Comprehensive Guide



The Bode plot, a cornerstone of control systems and signal processing, provides a graphical representation of a system's frequency response. This article focuses specifically on the Bode plot of a notch filter, a crucial type of filter designed to attenuate specific frequencies while allowing others to pass relatively unimpeded. Understanding the Bode plot of a notch filter is essential for designing and analyzing systems where the precise suppression of unwanted frequencies is critical, such as in audio processing, vibration control, and power system stabilization. We will dissect the key features of this plot, explain their significance, and illustrate them with practical examples.

1. Understanding Notch Filters



A notch filter, also known as a band-reject filter, is characterized by a sharp attenuation in a narrow frequency band around a specific center frequency (f<sub>0</sub>). This center frequency represents the frequency the filter is designed to reject. Outside this narrow band, the filter exhibits a relatively flat response, allowing other frequencies to pass through with minimal attenuation. The sharpness of the attenuation, often quantified by the Q-factor, determines the filter's selectivity. A high Q-factor indicates a sharper, more selective notch.

2. Components of a Notch Filter Bode Plot



The Bode plot consists of two separate graphs: the magnitude plot (in decibels) and the phase plot (in degrees), both plotted against the frequency (usually in logarithmic scale).

Magnitude Plot: This plot shows the gain or attenuation of the filter at different frequencies. For a notch filter, we observe a significant dip (notch) at the center frequency (f<sub>0</sub>). The depth of this dip represents the amount of attenuation at f<sub>0</sub>. The magnitude response is relatively flat on either side of the notch, indicating minimal attenuation of frequencies outside the rejection band.

Phase Plot: This plot depicts the phase shift introduced by the filter at different frequencies. The phase response exhibits a rapid change around the center frequency, reflecting the sharp transition in the magnitude response. The phase shift is typically close to zero far from the center frequency.

3. Interpreting the Bode Plot of a Second-Order Notch Filter



Many notch filters are implemented using second-order systems. Their transfer function often involves a quadratic term in the denominator. A typical second-order notch filter transfer function can be represented as:

H(s) = (s² + ω<sub>0</sub>²) / (s² + (ω<sub>0</sub>/Q)s + ω<sub>0</sub>²)

Where:

s is the complex frequency variable
ω<sub>0</sub> is the center frequency (in radians per second)
Q is the quality factor

The Bode plot will show a sharp notch at ω<sub>0</sub>. The Q factor significantly impacts the shape of the notch: a higher Q results in a narrower and deeper notch, while a lower Q results in a broader and shallower notch.

Example: Consider a second-order notch filter with ω<sub>0</sub> = 100 rad/s and Q = 5. The Bode plot would show a deep notch at approximately 15.9 Hz (ω<sub>0</sub>/2π). Frequencies significantly above and below this frequency would pass through with minimal attenuation. The phase plot would exhibit a rapid phase shift around 15.9 Hz.

4. Practical Applications and Examples



Notch filters find widespread applications:

Power Systems: Eliminating harmonics and unwanted frequencies in power grids.
Audio Processing: Removing unwanted hum (e.g., 50/60 Hz) or specific tonal frequencies from audio signals.
Vibration Control: Attenuating specific resonant frequencies in mechanical systems to reduce vibrations.
Instrumentation: Removing noise at a particular frequency from sensor readings.

For instance, in audio processing, a notch filter might be used to remove a 60 Hz hum from a recording. The Bode plot would show a deep notch at 60 Hz, effectively silencing the hum while preserving the rest of the audio spectrum.


5. Conclusion



The Bode plot is an invaluable tool for understanding and analyzing notch filters. Its graphical representation of the magnitude and phase response provides critical insights into the filter's performance across the frequency spectrum. By understanding the relationship between the notch filter's parameters (center frequency and Q-factor) and its Bode plot characteristics, engineers can design and optimize these filters for various applications where precise frequency rejection is paramount.

FAQs:



1. What is the difference between a notch filter and a band-pass filter? A notch filter rejects a narrow band of frequencies, while a band-pass filter allows only a narrow band of frequencies to pass.

2. How does the Q-factor affect the notch filter's performance? A higher Q-factor leads to a narrower and deeper notch, increasing selectivity but potentially making the filter more sensitive to component variations.

3. Can a notch filter be designed using other than second-order systems? Yes, higher-order notch filters can be designed to achieve steeper roll-offs and sharper notches.

4. How do I determine the appropriate center frequency and Q-factor for my application? The choice depends on the specific frequency to be rejected and the desired sharpness of the attenuation. Careful consideration of the application requirements is crucial.

5. What software tools are available for designing and simulating notch filter Bode plots? MATLAB, Simulink, and various other signal processing software packages offer tools for designing and analyzing notch filters and their corresponding Bode plots.
