Multiplexer Truth Table

Image related to multiplexer-truth-table

Decoding the Multiplexer: A Truth Table Adventure



Ever wondered how your computer chooses which input to listen to amidst a cacophony of signals? The answer, my friends, lies in the humble multiplexer – a digital gatekeeper that elegantly selects one signal from many. Think of it as a high-speed, electronic DJ, meticulously mixing and choosing the perfect track (data) to play at any given moment. But to truly understand this digital maestro, we need to delve into the heart of its operation: the multiplexer truth table. Let's embark on this enlightening journey!

Understanding the Basics: What is a Multiplexer?



A multiplexer, often abbreviated as "MUX," is a combinational logic circuit that selects one input signal from several input signals and forwards the selected input to a single output line. Imagine a telephone switchboard: multiple incoming calls (inputs) are directed to a single outgoing line (output) based on which call is selected. This selection is controlled by a set of "select" lines, which act like the switchboard operator, determining which input gets prioritized.

The number of input signals a multiplexer can handle is determined by its design. A 2-to-1 MUX has two inputs and one output, a 4-to-1 MUX has four inputs and one output, and so on. The general formula is: 2<sup>n</sup> inputs require 'n' select lines.

The Heart of the Matter: The Multiplexer Truth Table

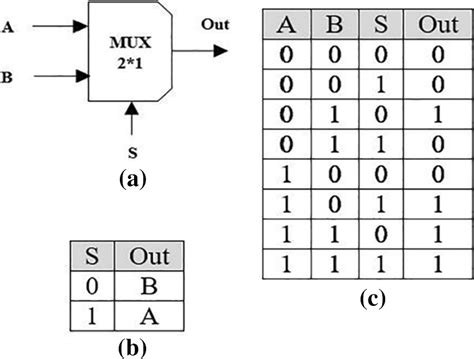

The truth table is the Rosetta Stone of digital logic, providing a clear, concise representation of a circuit's behavior for all possible input combinations. For a multiplexer, the truth table shows the output value for every possible combination of input and select signals. Let's illustrate this with a 2-to-1 MUX:


| Select Line (S) | Input I<sub>0</sub> | Input I<sub>1</sub> | Output Y |
|---|---|---|---|
| 0 | 0 | 0 | 0 |
| 0 | 0 | 1 | 0 |
| 0 | 1 | 0 | 1 |
| 0 | 1 | 1 | 1 |
| 1 | 0 | 0 | 0 |
| 1 | 0 | 1 | 1 |
| 1 | 1 | 0 | 0 |
| 1 | 1 | 1 | 1 |

In this table:

Select Line (S): This line determines which input is selected. A value of 0 selects I<sub>0</sub>, and a value of 1 selects I<sub>1</sub>.
Inputs (I<sub>0</sub>, I<sub>1</sub>): These are the data inputs to be selected.
Output (Y): This is the output line that carries the selected input.

Observe how the output directly reflects the selected input based on the value of the select line. This simple truth table perfectly encapsulates the functionality of the 2-to-1 MUX. Larger multiplexers follow a similar pattern, albeit with more inputs and select lines, resulting in a larger truth table.

Real-World Applications: Where Multiplexers Shine



Multiplexers are ubiquitous in digital systems. They find applications in:

Data Selection: In routers and network switches, multiplexers select data packets from different sources and route them to their destinations.
Data Transmission: Multiplexers combine multiple data streams into a single stream for efficient transmission over a shared communication channel (think cable TV).
Computer Architecture: Multiplexers are used within CPUs to select data from various registers or memory locations.
Digital Signal Processing: Multiplexers play a crucial role in selecting and routing signals in digital signal processing systems.

For example, imagine a multiplexer in a computer's ALU selecting between two operands for an arithmetic operation based on the instruction being executed. The select lines would be determined by the instruction itself, elegantly directing the computation.


Expanding the Horizons: Larger Multiplexers and Their Tables



As the number of inputs increases, so does the complexity (and size) of the truth table. A 4-to-1 MUX, for example, would require two select lines (S<sub>1</sub>, S<sub>0</sub>) and its truth table would be significantly larger, containing 16 rows (2<sup>4</sup> input combinations). However, the fundamental principle remains the same: the select lines determine which input is passed to the output.


Conclusion: Mastering the Multiplexer's Logic



The multiplexer, with its elegant simplicity and wide-ranging applications, is a cornerstone of digital design. Understanding its truth table is paramount to grasping its functionality and how it seamlessly integrates into larger systems. By decoding this digital gatekeeper, we unlock a deeper appreciation for the intricate logic that powers our modern digital world.


Expert-Level FAQs:



1. How can I design a larger multiplexer (e.g., 8-to-1) using smaller multiplexers (e.g., 2-to-1 or 4-to-1)? This can be achieved hierarchically by connecting the outputs of smaller multiplexers to the inputs of a larger one, effectively cascading them to achieve the desired functionality.

2. What is the relationship between a multiplexer and a demultiplexer? They are essentially duals of each other. A multiplexer selects one input and routes it to a single output, whereas a demultiplexer takes a single input and routes it to one of several outputs based on select lines.

3. How can I implement a multiplexer using only AND, OR, and NOT gates? This is a classic digital design problem solved using Boolean algebra. The select lines control the AND gates to select the appropriate input, which is then OR'ed together to produce the output.

4. How does the propagation delay of a multiplexer affect system performance? The propagation delay represents the time it takes for the signal to propagate through the multiplexer. This delay, particularly in high-speed systems, can impact overall system performance and needs careful consideration during design.

5. How can I analyze the power consumption of a multiplexer and optimize it for low-power applications? Analyzing power consumption involves considering switching activity on the inputs and outputs, leakage currents, and the technology used to implement the multiplexer. Optimization techniques include employing low-power logic gates and designing for reduced switching activity.
