Navigating the Winds of Change: Understanding and Utilizing Jet Stream World Maps



Have you ever wondered why a flight from New York to London can be drastically faster than the return journey? Or why a seemingly localized weather system can suddenly impact a vast region? The answer, in many cases, lies high above in the atmosphere: the jet stream. These powerful rivers of air significantly impact weather patterns, flight times, and even climate change projections. Understanding the jet stream, and being able to interpret a jet stream world map, is crucial for various fields, from aviation to meteorology to climate science. This article will delve into the intricacies of jet streams, explaining how they work, how to interpret their representation on maps, and their real-world significance.


What are Jet Streams?



Jet streams are fast-flowing, narrow air currents found in the atmospheres of some planets, including Earth. On Earth, they are located near the altitude of the tropopause, the boundary between the troposphere (where weather occurs) and the stratosphere. These powerful winds are typically several hundred kilometers long, a few hundred kilometers wide, and several kilometers thick. They are formed by the significant temperature differences between polar and equatorial air masses. This temperature gradient creates a pressure gradient, driving the air to flow from high to low pressure, resulting in the strong, westerly winds characteristic of the jet stream. The Coriolis effect, caused by Earth's rotation, further influences the jet stream's direction, deflecting it towards the east.


Types of Jet Streams: Understanding the Variations



While the westerly flow is the dominant feature, jet streams are not uniform. We primarily discuss two main types:

Polar Jet Stream: This jet stream is located closer to the poles, usually around 30,000 to 40,000 feet (9,000 to 12,000 meters) altitude. It is associated with the temperature contrast between the polar and mid-latitude air masses and is highly variable in strength and position. Its meandering path significantly influences weather systems across the mid-latitudes.

Subtropical Jet Stream: Situated at a lower latitude than the polar jet, typically around 30° latitude, this jet stream is less variable and generally weaker than its polar counterpart. It's primarily driven by the temperature difference between tropical and subtropical air. Its impact on weather is less pronounced than the polar jet, but it still plays a role in steering weather patterns.

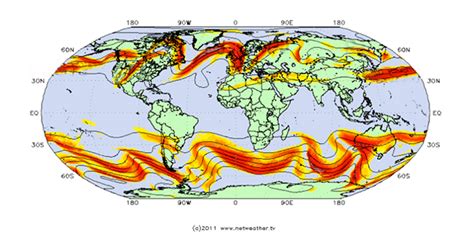

Interpreting a Jet Stream World Map



Jet stream maps typically depict the jet stream's location and strength using lines, often with arrows indicating the direction and speed. Isotach lines (lines of equal wind speed) further enhance the depiction, showcasing areas of higher and lower wind speeds within the jet stream itself. These maps use various color schemes, often with darker shades representing stronger winds. Analyzing these maps requires understanding:

Location: The latitude and longitude of the jet stream's core indicate its influence on specific regions. A northward shift can bring colder polar air southward, while a southward shift can bring warmer air northward.

Strength: The intensity of the jet stream, represented by wind speed, significantly impacts weather phenomena. Stronger jets can lead to faster-moving weather systems and more intense weather events.

Direction: While predominantly westerly, the jet stream's meandering creates troughs (dips southward) and ridges (bulges northward). These undulations are critical for weather forecasting as they steer weather systems. A trough can bring colder and wetter weather, while a ridge brings warmer and drier conditions.


Real-World Applications of Jet Stream Data



Understanding and utilizing jet stream data has numerous applications:

Aviation: Airlines utilize jet stream information to optimize flight routes and reduce travel times. Flying with the jet stream significantly reduces fuel consumption and flight duration. For instance, flights from the US to Europe are typically faster west-to-east due to the prevailing westerlies.

Meteorology: Weather forecasters rely heavily on jet stream data to predict the movement and intensity of weather systems. Its position and strength are crucial for anticipating the development and track of storms, cold fronts, and heat waves. The infamous "polar vortex" events are often linked to dramatic shifts in the polar jet stream.

Climate Science: The jet stream's behavior is influenced by climate change, and its changing patterns contribute to the altered weather patterns we observe globally. Studying the jet stream is vital for understanding and predicting the future impacts of climate change.


Conclusion



Jet streams are powerful atmospheric forces profoundly impacting our weather, climate, and even our travel plans. Understanding their behavior, as depicted on jet stream world maps, is essential for various disciplines. By analyzing the location, strength, and direction of these atmospheric rivers, we can gain valuable insights into weather forecasting, flight planning, and climate change projections. This knowledge empowers us to navigate the winds of change more effectively.


FAQs



1. How accurate are jet stream predictions? Accuracy varies depending on the forecasting model and time horizon. Short-term predictions (a few days) tend to be more accurate than long-term ones.

2. Can the jet stream be influenced by human activity? Yes, climate change, driven by human activities, is altering the jet stream's behavior, leading to more extreme weather events and altered weather patterns.

3. Are there jet streams in other planets? Yes, other planets with atmospheres also exhibit jet streams, albeit with differing characteristics. Jupiter, for instance, has a very prominent jet stream system.

4. How frequently do jet stream maps update? Operational jet stream maps are typically updated every few hours, reflecting the dynamic nature of these atmospheric currents.

5. Where can I find reliable jet stream maps? Several meteorological agencies, including the NOAA (National Oceanic and Atmospheric Administration) and the ECMWF (European Centre for Medium-Range Weather Forecasts), provide reliable jet stream data and visualizations online.
