Decoding the Transistor's Secrets: A Journey into its IV Characteristics
Ever wondered how a tiny sliver of silicon can control the flow of electricity, forming the backbone of modern electronics? The answer lies within its intricate IV characteristics – the relationship between the voltage applied to a transistor and the resulting current. It's not magic, but a fascinating interplay of physics and semiconductor behavior that allows us to build everything from smartphones to supercomputers. Let's embark on a journey to unravel these characteristics, revealing their power and applications.
Understanding the Fundamentals: Biasing and Regions of Operation
Before diving into the curves, let's establish some groundwork. Transistors, primarily Bipolar Junction Transistors (BJTs) and Field-Effect Transistors (FETs), are three-terminal devices. Applying voltages to these terminals – the base, collector, and emitter for BJTs; the gate, drain, and source for FETs – controls the current flowing between two of them. This process is called biasing. Crucially, the IV characteristics define how this current responds to changes in voltage, revealing distinct operating regions:
Active Region (BJTs): This is the sweet spot for amplification. The base-emitter junction is forward-biased (positive voltage applied), and the base-collector junction is reverse-biased (negative voltage applied). A small change in base current produces a large change in collector current, the basis for amplification in amplifiers and many digital circuits. Think about your audio amplifier: a tiny signal from your microphone is amplified significantly to drive your speakers. This is all thanks to the BJT operating in its active region.
Saturation Region (BJTs): Both junctions are forward-biased. The collector current is limited by the external circuit, not the transistor's ability to conduct. This region is crucial in switching applications, where the transistor acts as a fast on/off switch – like the millions of transistors switching on and off to display an image on your laptop screen.
Cut-off Region (BJTs): Both junctions are reverse-biased, and the collector current is essentially zero. The transistor acts as an open switch. This is used extensively in digital logic gates where a transistor represents a '0' state.
Ohmic Region (FETs): Similar to saturation in BJTs, the FET channel is fully “on,” and behaves like a resistor. This is used in some analog circuits requiring a controllable resistance.
Saturation Region (FETs): The channel is fully open, and the drain current is relatively independent of drain-source voltage (Vds). This is comparable to the active region of a BJT.
Cut-off Region (FETs): No current flows between drain and source. The gate voltage is insufficient to create a conducting channel.
Visualizing the Characteristics: The IV Curves

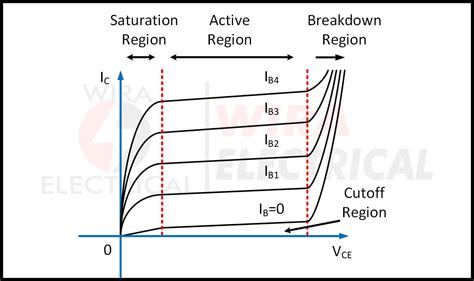

The IV characteristics are best represented graphically. For BJTs, we typically see plots of Ic (collector current) versus Vce (collector-emitter voltage) for various values of Ib (base current). These curves show the active, saturation, and cut-off regions clearly. The steep slope in the active region demonstrates the high gain. For FETs, the common plot is Id (drain current) versus Vds (drain-source voltage) for various values of Vgs (gate-source voltage). These curves show the saturation and ohmic regions, highlighting how gate voltage controls the drain current.
Understanding these curves is essential for circuit design. By selecting appropriate operating points (bias points) on the curves, engineers can ensure the transistor operates within its desired region and achieves the required performance.
Real-World Applications: From Amplification to Switching
The IV characteristics are not just theoretical concepts; they are the foundation of countless electronic devices. Consider these examples:
Audio Amplifiers: The active region of BJTs is crucial for amplifying weak audio signals, allowing us to enjoy music from our phones and laptops.
Switching Power Supplies: Transistors operating in the saturation and cut-off regions are the heart of efficient switching power supplies in computers and other electronic devices.
Digital Logic Gates: The ability of transistors to switch rapidly between on and off states (saturation and cut-off) is fundamental to digital logic, the basis of all modern computers and digital systems.
RF Amplifiers: Carefully designed transistors operating in their active region are essential for amplifying radio frequency signals in wireless communication systems.
Beyond the Basics: Temperature Effects and Non-Idealities
Real-world transistors are not perfect. Temperature variations affect their characteristics, leading to shifts in operating points and potentially compromising performance. Similarly, other non-idealities like base-width modulation (in BJTs) and channel-length modulation (in FETs) further complicate the idealized IV curves. These effects must be considered in the design of robust and reliable circuits.
Conclusion:
Understanding the IV characteristics of transistors is paramount for anyone working with electronics. These curves encapsulate the transistor's behavior, enabling the design of sophisticated circuits for a multitude of applications. By grasping the different operating regions and their implications, engineers can leverage the full power of these fundamental building blocks of modern electronics.
Expert-Level FAQs:
1. How do early-effect and base-width modulation impact the output characteristics of a BJT? Early-effect refers to the decrease in the effective base width at higher collector-emitter voltages, leading to an increase in collector current. Base-width modulation describes this change in base width due to changes in collector-emitter voltage.
2. How can you model the non-linear behavior of a transistor for precise circuit simulation? Non-linear models, such as the Ebers-Moll model for BJTs and the Shockley model for FETs, are used. Spice simulators utilize these models to accurately predict the circuit behavior.
3. How does temperature affect the transistor’s gain (β for BJT and gm for FET)? Temperature significantly impacts both. β generally decreases with increasing temperature in BJTs, while gm increases with temperature in FETs, but the relationship is complex and depends on the specific device.
4. What are the trade-offs between different transistor types (e.g., NPN vs. PNP BJT, MOSFET vs. JFET) in terms of IV characteristics? NPN BJTs are generally preferred for high-frequency applications, whereas PNP BJTs are less common. MOSFETs offer higher input impedance than BJTs and JFETs, and different types of MOSFETs have their specific characteristics concerning threshold voltage and current handling capabilities.
5. How can you experimentally determine the IV characteristics of a transistor? A curve tracer is a specialized piece of equipment that automatically sweeps the input voltages and measures the output currents to generate the IV curves directly. Alternatively, manual measurements with a multimeter and variable power supplies can be used, though it is much more laborious.
