IPv6 Address Representation: A Comprehensive Guide

The Internet Protocol version 6 (IPv6) is the successor to IPv4, designed to address the rapidly depleting pool of IPv4 addresses. A crucial aspect of understanding IPv6 is its unique address representation, significantly different from its predecessor. This article provides a detailed explanation of IPv6 address representation, exploring its structure, notation, and various forms.

1. The Structure of an IPv6 Address

Unlike the 32-bit dotted-decimal notation of IPv4, IPv6 addresses are 128-bit numbers. This vast address space allows for a significantly larger number of unique addresses. The address is represented as eight groups of four hexadecimal digits, separated by colons. Each group represents 16 bits.

For example: `2001:0db8:85a3:0000:0000:8a2e:0370:7334` is a valid IPv6 address.

2. Hexadecimal Notation

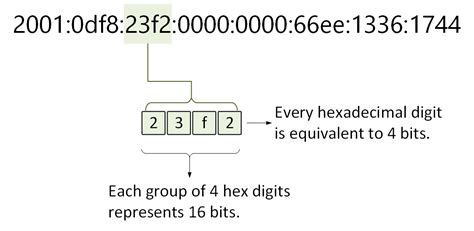

IPv6 uses hexadecimal (base-16) notation, employing the digits 0-9 and the letters A-F to represent values from 0 to 15. This compact representation allows for the efficient encoding of the 128-bit address within a manageable string of characters. Each hexadecimal digit represents four bits.

For instance, the hexadecimal digit 'A' represents the binary value `1010`. Therefore, understanding hexadecimal is fundamental to interpreting IPv6 addresses.

3. Leading Zero Compression

To simplify the representation of IPv6 addresses, leading zeros within each group can be omitted. This compression technique makes long strings of zeros more manageable.

For example, `2001:0db8:85a3:0000:0000:8a2e:0370:7334` can be shortened to `2001:db8:85a3:0:0:8a2e:370:7334`. Notice that the leading zeros in each group have been removed.

4. Double Colon (::) Compression

When an IPv6 address contains multiple consecutive groups of zeros, they can be further compressed using a double colon (::). This double colon represents one and only one occurrence of multiple consecutive groups of zeros. It can only be used once within a single address.

Consider the address: `2001:0db8:0000:0000:0000:0000:1428:57ab`. Using double colon compression, it becomes `2001:db8::1428:57ab`. The double colon replaces the six consecutive groups of zeros. Note that using the double colon in a different position would represent a different address.

5. IPv4-compatible Addresses and IPv4-mapped Addresses

IPv6 supports the integration of IPv4 addresses. This is achieved through two mechanisms:

IPv4-compatible addresses: These addresses have the first 80 bits set to zero, followed by a 32-bit IPv4 address. They are rarely used in practice due to potential routing issues. Example: `::ffff:192.0.2.1` (equivalent to IPv4 address 192.0.2.1).

IPv4-mapped addresses: These addresses start with `::ffff:`, followed by the 32-bit IPv4 address represented in hexadecimal. This format is more commonly used for transitioning between IPv4 and IPv6. Example: `::ffff:c000:0201` (equivalent to IPv4 address 192.0.2.1).

6. Unicast, Multicast, and Anycast Addresses

IPv6 addresses are categorized into different types based on their function:

Unicast: These addresses uniquely identify a single interface. Most IPv6 addresses fall under this category.

Multicast: These addresses identify a group of interfaces. Data sent to a multicast address is received by all interfaces subscribed to that group.

Anycast: These addresses identify a set of interfaces. A packet sent to an anycast address is delivered to the closest interface among the set.

7. Understanding the Address Structure (Example)

Let’s analyze a sample address: `2001:0db8:85a3:0000:0000:8a2e:0370:7334`

This address, when simplified using leading zero and double colon compression, becomes `2001:db8:85a3::8a2e:370:7334`.

Each segment represents 16 bits. The entire address comprises 128 bits (8 segments x 16 bits/segment). The specific meaning of each segment is determined by its context within the network hierarchy.

Summary

IPv6 address representation utilizes a 128-bit hexadecimal notation, offering a vast address space. Leading zero compression and double colon compression simplify the representation of these long addresses. Different address types, including IPv4-compatible and IPv4-mapped addresses, facilitate the transition from IPv4. Understanding the structure and compression techniques is essential for working with IPv6 networks.

FAQs

1. What is the difference between IPv4 and IPv6 address representation? IPv4 uses a 32-bit dotted-decimal notation (e.g., 192.168.1.1), while IPv6 uses a 128-bit hexadecimal notation with colons separating eight 16-bit groups (e.g., 2001:db8:85a3::8a2e:370:7334).

2. Why are leading zeros omitted in IPv6 addresses? Omitting leading zeros improves readability and makes the addresses less cumbersome.

3. Can the double colon (::) be used more than once in an IPv6 address? No, the double colon can only be used once to represent a single contiguous sequence of zero groups.

4. What are IPv4-mapped addresses used for? They are used to represent IPv4 addresses within the IPv6 addressing scheme, facilitating the transition between the two protocols.

5. How can I check the IPv6 address of my computer? You can find your IPv6 address by opening your network settings (the method varies depending on your operating system) and looking for IPv6 configuration details. The command `ipconfig` (Windows) or `ifconfig` (Linux/macOS) can also provide this information from the command line.
