Decoding the Whispers of IPv6: A Deep Dive into ICMPv6 Message Types

The internet, a vast and intricate network, relies on constant communication between devices. While TCP and UDP handle the bulk of data transmission, the Internet Control Message Protocol version 6 (ICMPv6) acts as the network's nervous system, providing crucial feedback and diagnostic information. Unlike its predecessor ICMPv4, ICMPv6 boasts a more refined and comprehensive set of message types, each playing a vital role in maintaining network stability and troubleshooting connectivity issues. This article serves as a comprehensive guide to understanding the various ICMPv6 message types, empowering you to diagnose network problems and gain a deeper appreciation of IPv6's underlying mechanisms.

Understanding the ICMPv6 Framework

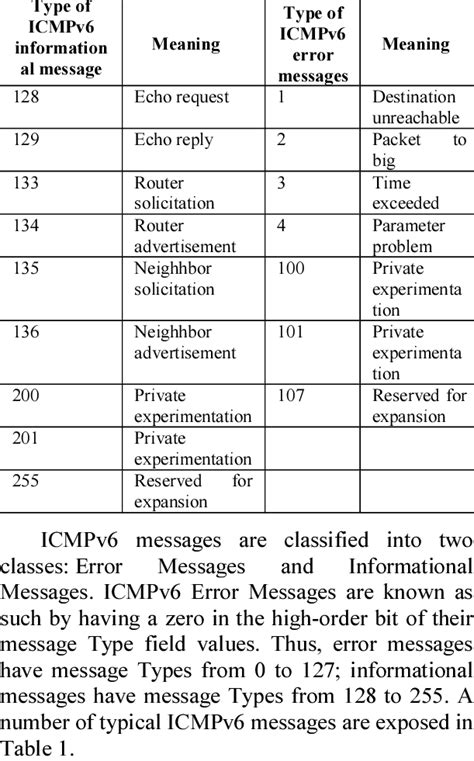

Before delving into specific message types, it's crucial to understand the basic structure of an ICMPv6 message. Every ICMPv6 packet consists of a header followed by a message-specific data payload. The header includes fields like the message type and code, allowing the receiving device to identify the message's purpose. The type field identifies the general category of the message (e.g., echo request, neighbor solicitation), while the code provides more specific details within that category.

Different ICMPv6 messages serve distinct purposes, some relating to basic network connectivity, others focused on advanced network management and diagnostics. Let's examine some key message types:

1. Echo Request and Echo Reply (Types 128 and 129): The Network's Ping

These are the ICMPv6 equivalents of the familiar "ping" command. An `Echo Request` (type 128) is sent to a target node to verify its reachability. The target node responds with an `Echo Reply` (type 129), confirming its presence and providing information on the round-trip time. This is a fundamental tool for network administrators and troubleshooting.

Real-world example: A network administrator suspects a server is down. They use the `ping6` command to send an ICMPv6 Echo Request to the server's IPv6 address. A successful reply confirms connectivity; a failure suggests a network issue between the administrator's machine and the server.

2. Neighbor Solicitation and Neighbor Advertisement (Types 135 and 136): Discovering Neighbors

These messages are crucial for IPv6's neighbor discovery protocol (NDP). A `Neighbor Solicitation` (type 135) is sent to discover the link-local address of a node given its IPv6 address. The target node responds with a `Neighbor Advertisement` (type 136), providing its link-local address and other relevant information. This process is essential for devices to locate each other on a local network segment.

Real-world example: A new device joins a Wi-Fi network. It needs to discover the router's link-local address to communicate. It sends Neighbor Solicitation messages; the router responds with Neighbor Advertisement, establishing the connection.

3. Router Solicitation and Router Advertisement (Types 133 and 134): Finding the Gateway

These messages are vital for devices to discover routers on a network. A `Router Solicitation` (type 133) is sent by a host to find available routers. Routers respond with `Router Advertisements` (type 134), providing their addresses, prefix information, and other network configuration parameters.

Real-world example: A laptop connects to a new network. It sends a Router Solicitation message to discover available routers. The router responds with a Router Advertisement, enabling the laptop to access the internet through the router.

4. Redirect Message (Type 137): Optimizing Routing

A `Redirect` message (type 137) informs a host that a better path exists to reach a destination. This is used to optimize routing within a local network. It's less frequently encountered by end users but plays a critical role in network efficiency.

5. Router Renumbering Message (Type 138): Dynamic Network Configuration

The `Router Renumbering` message (type 138) facilitates smooth transitions when router addresses change, ensuring ongoing network connectivity without disruption. This is particularly important in dynamic network environments.

6. Membership Query and Report (Types 143 and 144): Multicast Group Management

ICMPv6 supports multicast communication, where a single message can reach multiple recipients. `Membership Query` (type 143) helps determine which nodes are members of a specific multicast group, while `Membership Report` (type 144) confirms membership.

7. MLDv2 (Multicast Listener Discovery version 2): Advanced Multicast Management

MLDv2 leverages ICMPv6 to efficiently manage multicast group memberships. This provides features beyond simple membership reporting, improving the robustness and scalability of multicast communications.

Conclusion

Understanding ICMPv6 message types is crucial for effectively troubleshooting IPv6 networks and maintaining their stability. From the basic ping functionality of Echo Request and Reply to the sophisticated neighbor discovery and multicast management provided by other messages, ICMPv6 is essential for the smooth operation of the IPv6 internet. This comprehensive overview provides a strong foundation for deeper exploration into the intricacies of IPv6 networking.

FAQs:

1. What tool can I use to capture and analyze ICMPv6 messages? Tools like `tcpdump` (or its equivalent `Wireshark`) allow you to capture network traffic, including ICMPv6 messages, and analyze their contents.

2. How can I filter ICMPv6 traffic using `tcpdump`? Use options like `tcpdump -i <interface> icmp6` to capture only ICMPv6 packets on a specific interface. You can further refine this with options to filter by ICMPv6 type and code.

3. What are the differences between ICMPv4 and ICMPv6? ICMPv6 is significantly more structured and features more message types tailored to IPv6's architecture, including those related to neighbor discovery and multicast management, which are absent in ICMPv4.

4. Why is Neighbor Discovery Protocol (NDP) so important in IPv6? NDP replaces the ARP protocol of IPv4, enabling automatic address configuration and neighbor discovery within a local network segment without relying on centralized services.

5. How can I troubleshoot connectivity issues using ICMPv6 messages? Analyzing ICMPv6 messages using tools like `tcpdump` or `Wireshark` can help pinpoint problems like router failures, network congestion, or issues with neighbor discovery. The absence of Echo Replies, for example, suggests connectivity problems.
