Mastering Plot Limits in MATLAB: A Comprehensive Guide

MATLAB's plotting capabilities are incredibly powerful, allowing visualization of complex data in a myriad of ways. However, the default plot settings sometimes fall short, particularly when you need to focus on specific regions of your data or highlight particular trends. Uncontrolled axes limits can lead to cluttered visuals, obscuring important details or misrepresenting the data. This comprehensive guide will equip you with the knowledge and techniques to effectively limit plot axes in MATLAB, ensuring your visualizations are clear, concise, and impactful.

1. Understanding the Need for Plot Limiting

Imagine you're analyzing the performance of a new algorithm over a wide range of input sizes. Your data might span from 10 to 10,000 elements, but the crucial performance differences lie between 100 and 1000. Plotting the entire range without adjusting the limits would result in the key information being compressed into a tiny section of the graph, rendering it virtually invisible. This is where precisely controlling your plot limits becomes essential.

Similarly, consider analyzing sensor data where most readings fall within a narrow range, but occasional outliers significantly skew the default axis scales. Limiting the plot to a relevant range prevents these outliers from dominating the visualization and obscuring the typical behavior of your system. Effective plot limiting allows you to:

Highlight key features: Focus on regions of interest, enhancing the readability and impact of your visualizations.
Improve visual clarity: Avoid cluttered plots by removing irrelevant data points.
Enhance data interpretation: Prevent misleading visuals caused by skewed axis scales.
Create professional-looking figures: Present your data in a clear and concise manner suitable for reports and publications.

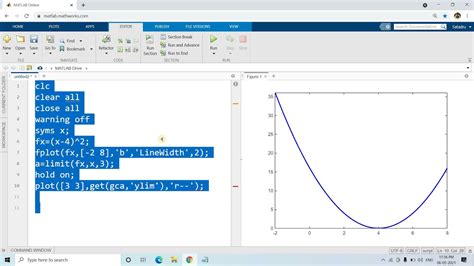

2. Basic Methods for Limiting Plot Axes

MATLAB offers several straightforward methods to control plot limits. The most common approach involves using the `xlim` and `ylim` functions:

```matlab
% Sample data
x = 1:1000;
y = x.^2;

% Plot the data
plot(x,y);

% Set x-axis limits from 100 to 1000
xlim([100 1000]);

% Set y-axis limits from 10000 to 1000000
ylim([10000 1000000]);

% Add labels and title for better visualization
xlabel('Input Size');
ylabel('Algorithm Runtime');
title('Algorithm Performance');
grid on;
```

This code snippet first generates a plot of x² and then uses `xlim` and `ylim` to restrict the x and y axes to specific ranges. The `grid on` command improves readability.

For three-dimensional plots, you'll use the `zlim` function in an analogous manner. These functions can also be used interactively within the figure window using the zoom and pan tools.

3. Advanced Techniques: Automatic Scaling and Dynamic Limits

Sometimes, automatically determining appropriate limits is desirable. MATLAB provides functions that facilitate this:

`axis auto`: Resets the axes limits to automatically scale to the data. Useful after manual adjustments to revert to automatic scaling.
`axis equal`: Sets equal scaling for both x and y axes, ensuring that circles appear as circles and not ellipses.
`axis tight`: Sets the axes limits to be just large enough to encompass all data points, eliminating unnecessary whitespace.
`axis square`: Makes the axes square, useful for symmetric data representations.

For dynamic limits based on data analysis, you might calculate the minimum and maximum values of your data and then use these values to set the limits:

```matlab
xmin = min(x);
xmax = max(x);
ymin = min(y);
ymax = max(y);
xlim([xmin xmax]);
ylim([ymin ymax]);
```

This approach provides greater control, especially when dealing with large datasets or when you need to ensure all data points are visible.

4. Limiting Axes in Subplots and Multiple Plots

When working with subplots or multiple plots within a single figure, you'll need to specify the axes handle to apply the limit functions correctly. The `subplot` function returns a handle to the current axes.

```matlab
subplot(2,1,1); % 2x1 grid, first subplot
plot(x,y);
xlim([100 500]); % Limits for the first subplot

subplot(2,1,2); % 2x1 grid, second subplot
plot(x,sqrt(y));
ylim([0 300]); % Limits for the second subplot
```

This code demonstrates how to set different limits for different subplots using the subplot handles implicitly.

5. Combining Plot Limiting with Other Plotting Enhancements

Effective plot limiting is often part of a broader strategy to enhance visualizations. Combine these techniques with:

Legends: Clearly label different data series to aid interpretation.
Annotations: Add text to highlight specific points or regions of interest.
Custom Tick Labels: Improve readability by choosing appropriate tick spacing and labels.
Colormaps: Use appropriate colormaps to highlight data variation effectively.

By integrating these strategies, you can produce visually compelling and insightful plots that effectively communicate your data.

Conclusion

Mastering plot limits in MATLAB is crucial for creating clear, informative visualizations. Whether using basic `xlim` and `ylim` functions or employing more advanced techniques for automatic scaling or dynamic limits, understanding these tools allows you to tailor your plots to highlight key data features and avoid misleading interpretations. By combining plot limiting with other plotting enhancements, you can create compelling visualizations that effectively communicate your findings.

FAQs

1. Can I set asymmetric limits? Yes, you can set different lower and upper bounds independently using `xlim([lower_bound upper_bound])` and `ylim([lower_bound upper_bound])`.

2. How do I limit the axes in a 3D plot? Use the `zlim` function in the same way you use `xlim` and `ylim`.

3. What happens if I set limits that don't include all data points? Some data points might be excluded from the visualization, potentially leading to incomplete or misleading representations.

4. Can I automate the process of determining appropriate limits for large datasets? Yes, you can use statistical functions like `prctile` to determine percentiles and set limits accordingly, ensuring that most of the data is visible.

5. How can I prevent overlapping labels in plots with many data points? Use the `xtick` and `ytick` functions to control the number and position of tick marks, reducing label overlap. Consider rotating labels using `xticklabel_rotate` for better readability.
