Hexadecimal To Binary

From Hex to Bits: A Comprehensive Guide to Hexadecimal to Binary Conversion

Hexadecimal (base-16) and binary (base-2) are two fundamental number systems in computer science. Understanding how to convert between them is crucial for anyone working with computer architecture, programming, or data representation. This article provides a detailed guide to converting hexadecimal numbers to their binary equivalents, explaining the underlying principles and providing practical examples.

Understanding the Number Systems

Before delving into the conversion process, let's briefly recap the basics of hexadecimal and binary.

Binary (Base-2): The binary system uses only two digits, 0 and 1. This aligns perfectly with the on/off states of electronic circuits, making it the foundational language of computers. Each digit in a binary number is called a bit. For example, 1011₂ represents (1 × 2³) + (0 × 2²) + (1 × 2¹) + (1 × 2⁰) = 11 in decimal.

Hexadecimal (Base-16): The hexadecimal system uses 16 digits: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, A, B, C, D, E, F. A, B, C, D, E, and F represent the decimal values 10, 11, 12, 13, 14, and 15 respectively. Hexadecimal is often preferred over binary for representing large binary numbers due to its compactness. For instance, the binary number 1111₂ is equivalent to F₁₆ in hexadecimal.

The Core Conversion Principle: Grouping by Four

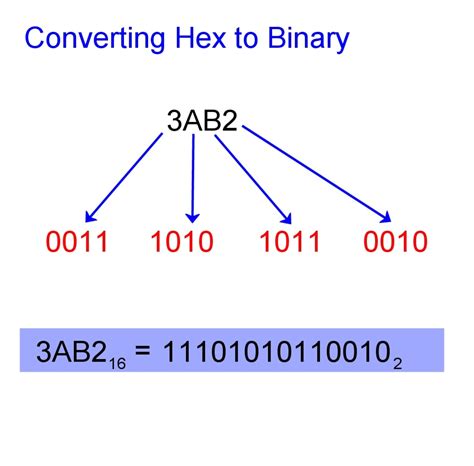

The key to efficiently converting hexadecimal to binary lies in recognizing that each hexadecimal digit corresponds to a four-bit (a nibble) binary representation. This is because 2⁴ = 16, meaning there are 16 possible combinations of four bits (0000 to 1111), which align perfectly with the 16 hexadecimal digits.

Step-by-Step Conversion Process

Let's outline the procedure with a specific example: Convert the hexadecimal number A2F₁₆ to binary.

1. Separate Hexadecimal Digits: Break down the hexadecimal number into its individual digits: A, 2, and F.

2. Convert Each Digit to Binary: Use the following table to convert each hexadecimal digit into its four-bit binary equivalent:

| Hexadecimal | Binary |
|---|---|
| 0 | 0000 |
| 1 | 0001 |
| 2 | 0010 |
| 3 | 0011 |
| 4 | 0100 |
| 5 | 0101 |
| 6 | 0110 |
| 7 | 0111 |
| 8 | 1000 |
| 9 | 1001 |
| A | 1010 |
| B | 1011 |
| C | 1100 |
| D | 1101 |
| E | 1110 |
| F | 1111 |

Therefore:
A₁₆ = 1010₂
2₁₆ = 0010₂
F₁₆ = 1111₂

3. Concatenate the Binary Equivalents: Combine the binary representations of each hexadecimal digit to obtain the final binary number.

A2F₁₆ = 1010 0010 1111₂

Therefore, the binary representation of A2F₁₆ is 101000101111₂.

Examples with Different Hexadecimal Numbers

Let's try a few more examples to solidify our understanding:

1B5₁₆:
1₁₆ = 0001₂
B₁₆ = 1011₂
5₁₆ = 0101₂
1B5₁₆ = 0001 1011 0101₂

3E₁₆:
3₁₆ = 0011₂
E₁₆ = 1110₂
3E₁₆ = 0011 1110₂

DEADBEEF₁₆: (A common example used in computer science)
D₁₆ = 1101₂
E₁₆ = 1110₂
A₁₆ = 1010₂
B₁₆ = 1011₂
F₁₆ = 1111₂
DEADBEEF₁₆ = 1101 1110 1010 1101 1011 1110 1111₂

Utilizing Online Converters and Programming Languages

While manual conversion is valuable for understanding the process, various online converters and programming languages offer built-in functions for efficient hexadecimal-to-binary conversion. These tools are particularly useful when dealing with larger hexadecimal numbers. Many programming languages, such as Python, C++, and Java, offer functions or libraries for this purpose.

Summary

Converting hexadecimal to binary is a fundamental skill in computer science. The process relies on the one-to-one correspondence between each hexadecimal digit and its four-bit binary equivalent. By separating the hexadecimal digits, converting each to its binary form, and concatenating the results, we can efficiently translate hexadecimal numbers into their binary representations. This understanding is crucial for grasping data representation, memory addressing, and other core computer science concepts.

Frequently Asked Questions (FAQs)

1. Can I convert hexadecimal numbers with fractional parts to binary? Yes, you can. The process involves converting the integer part and the fractional part separately. The fractional part uses powers of 2 less than 1 (e.g., 1/2, 1/4, 1/8...).

2. Why is hexadecimal preferred over binary for representing memory addresses? Hexadecimal provides a more compact and human-readable representation of large binary numbers commonly used in memory addresses.

3. What happens if I try to convert a non-hexadecimal character (e.g., 'G')? This will result in an error as 'G' is not a valid hexadecimal digit.

4. Are there any potential pitfalls in manual hexadecimal-to-binary conversion? The primary pitfall is making errors in the binary equivalent of each hexadecimal digit. Double-checking your work is recommended.

5. Where can I find online hexadecimal-to-binary converters? A simple web search for "hex to binary converter" will yield numerous online tools for this conversion.
