Finding Current In A Parallel Circuit

Decoding the Currents in Parallel Circuits: A Comprehensive Guide

Understanding how to find the current in a parallel circuit is fundamental to grasping the basics of electricity. Unlike series circuits where current remains constant throughout, parallel circuits exhibit a more complex, yet equally important, current distribution. This article aims to provide a comprehensive understanding of calculating current in parallel circuits, breaking down the process into manageable steps and illustrating the concepts with practical examples. We will explore the underlying principles and provide tools to navigate this aspect of circuit analysis.

Understanding the Nature of Parallel Circuits

In a parallel circuit, multiple components are connected across the same voltage source, forming separate branches. Each branch receives the full voltage of the source, independently of the other branches. This is the key difference from a series circuit where the voltage is divided among the components. Consider a household electrical system: lights, appliances, and outlets are typically wired in parallel. This arrangement ensures that each device receives the full voltage (typically 120V or 240V), allowing them to operate correctly. If one device fails, the others continue to function without interruption, a significant advantage over a series arrangement.

Kirchhoff's Current Law: The Cornerstone of Parallel Circuit Analysis

Kirchhoff's Current Law (KCL) is the fundamental principle governing current flow in any circuit, including parallel circuits. It states that the total current entering a junction (or node) is equal to the total current leaving that junction. In a parallel circuit, the main current from the source splits into individual branch currents, and these branch currents recombine at the other end to form the total current returning to the source. Mathematically, this can be expressed as:

`ITotal = I1 + I2 + I3 + ... + In`

Where:

`ITotal` is the total current entering/leaving the parallel combination.
`I1`, `I2`, `I3`, ..., `In` are the individual branch currents.

Calculating Branch Currents using Ohm's Law

Ohm's Law provides the essential link between voltage (V), current (I), and resistance (R) in a circuit: `V = I R`. In a parallel circuit, each branch has its own resistance and therefore its own current. Since the voltage across each branch is the same (and equal to the source voltage), we can use Ohm's Law to calculate the current in each branch:

`Ibranch = Vsource / Rbranch`

Where:

`Ibranch` is the current in a specific branch.
`Vsource` is the voltage of the source.
`Rbranch` is the resistance of that specific branch.

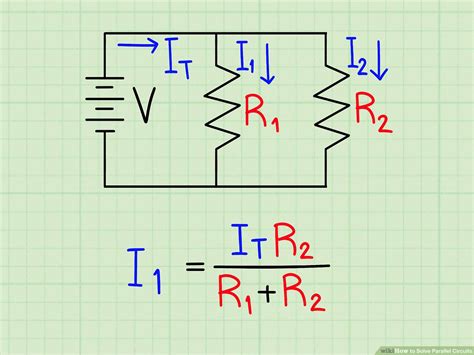

Example: A Simple Parallel Circuit

Let's consider a simple parallel circuit with a 12V battery and two resistors: R1 = 4Ω and R2 = 6Ω.

1. Calculate the current in each branch:
I1 = 12V / 4Ω = 3A
I2 = 12V / 6Ω = 2A

2. Calculate the total current:
ITotal = I1 + I2 = 3A + 2A = 5A

Therefore, the total current supplied by the battery is 5A, with 3A flowing through R1 and 2A flowing through R2.

Calculating Total Resistance in a Parallel Circuit

While not directly required for finding the individual branch currents, understanding total resistance in a parallel circuit is crucial. The total resistance (RTotal) of a parallel circuit is always less than the smallest individual resistance. This is because the added paths for current flow offer less overall resistance. The formula for calculating total resistance in a parallel circuit with 'n' resistors is:

`1/RTotal = 1/R1 + 1/R2 + 1/R3 + ... + 1/Rn`

For our previous example:

`1/RTotal = 1/4Ω + 1/6Ω = 5/12Ω`

`RTotal = 12Ω/5 = 2.4Ω`

The total resistance is 2.4Ω, which is less than both 4Ω and 6Ω. Once total resistance is known, Ohm's Law can be used to calculate the total current: `ITotal = Vsource / RTotal = 12V / 2.4Ω = 5A`.

Conclusion

Finding the current in a parallel circuit involves applying Kirchhoff's Current Law and Ohm's Law. Understanding these fundamental principles allows for the accurate calculation of both individual branch currents and the total circuit current. Parallel circuits, with their independent branch currents, provide a flexible and robust way to distribute power in various applications, from household wiring to complex electronic systems.

Frequently Asked Questions (FAQs)

1. What happens if one branch in a parallel circuit is open (broken)? The other branches will continue to function normally, as they are independent. The total current will decrease.

2. Can I use Ohm's Law directly to find the total current in a parallel circuit? Only if you first calculate the total equivalent resistance of the parallel combination.

3. How does the number of branches affect the total current? Adding more branches (with resistors) generally increases the total current, provided the voltage source remains constant.

4. What if the resistors in the parallel circuit have different values? The current will be different in each branch, determined by the individual branch resistance and the source voltage.

5. What is the significance of the total resistance being lower than the smallest individual resistance? It reflects the increased ability of the circuit to conduct current due to the multiple parallel paths.
