Excel Solver's "AllDifferent" Constraint: Optimizing Assignments with Ease



Microsoft Excel's Solver is a powerful tool for tackling optimization problems. While familiar with minimizing costs or maximizing profits, many users overlook Solver's ability to handle assignment problems using the "AllDifferent" constraint. This constraint ensures that each variable in a set takes on a unique value, preventing duplicates and streamlining solutions for various scheduling, assignment, and resource allocation tasks. This article will demystify the "AllDifferent" constraint, showing you how to harness its power effectively.


Understanding the "AllDifferent" Constraint



The core functionality of "AllDifferent" is straightforward: it prevents any two variables within a specified range from holding the same value. Imagine assigning employees to projects; "AllDifferent" ensures that each employee is assigned to only one project and vice versa, eliminating the possibility of assigning a single employee to multiple projects simultaneously. This is crucial for many real-world scenarios where unique assignments are mandatory. It’s a powerful tool that simplifies the process of setting up and solving complex optimization problems.


Setting up the "AllDifferent" Constraint in Solver



To utilize the "AllDifferent" constraint, you'll need to set up your Solver model properly. This involves:

1. Defining your Decision Variables: These are the cells containing the values Solver will adjust to find the optimal solution. In an assignment problem, these might represent the employee assigned to each project.

2. Setting your Objective Function: This is the cell Solver aims to optimize (maximize or minimize). This could be the total cost, total time, or any other relevant metric.

3. Adding Constraints: This is where the "AllDifferent" constraint comes into play. You'll need to select your decision variables and specify the "AllDifferent" constraint using Solver's constraint dialogue box. Note: The "AllDifferent" constraint is typically found under the "Add" button within the "Constraints" section of the Solver Parameters dialog box. You may need to select the "Add" button multiple times if you have multiple sets of variables needing unique values.

4. Selecting a Solving Method: Solver offers different solving methods (Simplex LP, GRG Nonlinear, Evolutionary). The best method depends on the complexity of your model. Often, the Simplex LP method will work effectively for straightforward assignment problems using AllDifferent.

5. Solving the Model: Once everything is set up correctly, click "Solve" to let Solver find the optimal solution that respects the "AllDifferent" constraint.


Practical Example: Assigning Employees to Projects



Let's consider a scenario where we have three employees (A, B, C) and three projects (1, 2, 3). Each employee needs to be assigned to exactly one project, and each project must be assigned to exactly one employee. We'll represent assignments in a 3x3 matrix. A '1' indicates an assignment, and a '0' indicates no assignment.

| Employee | Project 1 | Project 2 | Project 3 |
|---|---|---|---|
| A | Decision Variable (e.g., Cell D2) | Decision Variable (e.g., Cell E2) | Decision Variable (e.g., Cell F2) |
| B | Decision Variable (e.g., Cell D3) | Decision Variable (e.g., Cell E3) | Decision Variable (e.g., Cell F3) |
| C | Decision Variable (e.g., Cell D4) | Decision Variable (e.g., Cell E4) | Decision Variable (e.g., Cell F4) |


In Solver, you would:

Decision Variables: Select the entire 3x3 matrix (D2:F4).
Objective Function: This could be a dummy cell (e.g., a sum of the decision variables – although for this simple example an objective function is not strictly needed, as we only need to enforce the assignment constraint).
Constraints: Add the constraint that the sum of each row equals 1 (each employee gets one project) and the sum of each column equals 1 (each project gets one employee). Then, separately, apply the "AllDifferent" constraint to the cells containing the assignments (D2:F4), essentially ensuring no two employees have the same project.



Actionable Takeaways & Key Insights



The "AllDifferent" constraint is a powerful tool for solving assignment problems in Excel Solver.
Proper model setup is crucial for accurate results. Ensure your decision variables, objective function, and constraints are defined correctly.
Experiment with different Solver solving methods to find the most efficient approach for your specific problem.
Understanding the limitations of Solver is vital. Extremely large or complex problems might require more advanced optimization techniques.


Frequently Asked Questions (FAQs)



1. Can I use "AllDifferent" with non-integer variables? No, "AllDifferent" typically works best with integer variables representing distinct assignments or choices.

2. What if I have more employees than projects (or vice versa)? You'll need to adjust your constraints accordingly. You might introduce dummy projects or employees to balance the assignment.

3. Can I use "AllDifferent" with multiple sets of variables? Yes, you can apply the "AllDifferent" constraint multiple times to different ranges of cells, ensuring uniqueness within each set.

4. What if Solver doesn't find a solution? This might indicate an infeasible problem (no solution exists that satisfies all constraints) or that your model has errors. Review your constraints and decision variables.

5. Are there alternatives to the "AllDifferent" constraint for assignment problems? Yes, you could potentially achieve similar results using binary variables and carefully crafted constraints, but "AllDifferent" offers a more direct and user-friendly approach.

Links:

Converter Tool

Conversion Result:

=

Note: Conversion is based on the latest values and formulas.

Formatted Text:

convert 88 cups to fluid ounces
24oz to ml
189 cm to inches
190mm to inches
105cm to feet
189cm in feet
93 pounds to kg
450 kg to lbs
how long is 48 hours
126lbs to kg
20 liters to gallons
250 kilo is how many pounds
380mm in inches
80 inch to feet
48kg to pounds

Search Results:

How Integer, Binary and Alldifferent constraints affect solving A constraint such as A1:A5 = alldifferent, where A1:A5 are decision variable cells, requires that these cells must be integers in the range 1 to N (N = 5 in this example), with each variable different from all the others at the solution.

Excel Solver tutorial with step-by-step examples - Ablebits 21 Mar 2023 · The tutorial explains how to add and where to find Solver in different Excel versions, from 2016 to 2003. Step-by-step examples show how to use Excel Solver to find optimal solutions for linear programming and other kinds of problems.

solver - Missing AllDifferent constraint in Excel 2007 - Super User 9 Aug 2016 · I am trying to use the solver in Excel 2007 but I did not find "alldifferent" constraint in it, e.g: example I can see "integer" "binary" but there is no "alldifferent".

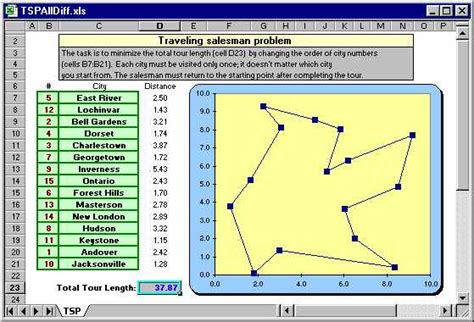

Solving the Traveling Salesman Problem with the Alldifferent … The purpose of this paper is to show how to use the Alldifferent constraint in Solver in MS Excel to solve the traveling salesman problem (TSP).
