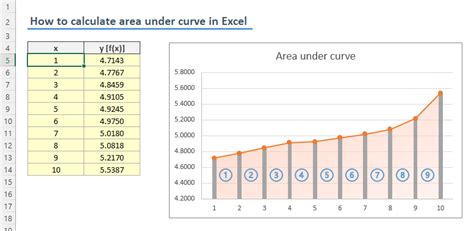

Image related to calculate-area-under-curve-excel

Calculating the Area Under a Curve in Excel: A Simple Guide



Understanding the area under a curve is crucial in many fields, from finance (calculating accumulated profits) to engineering (determining work done by a force). While complex mathematical techniques exist, Excel provides surprisingly accessible methods to approximate this area, even for curves defined by non-standard functions. This article will guide you through these methods, focusing on clarity and practical application.


1. Understanding the Concept: Why Calculate Area Under the Curve?



The area under a curve represents the accumulation of a quantity over a given interval. Imagine a graph showing the speed of a car over time. The area under the speed-time curve represents the total distance traveled. Similarly, the area under a cost-time curve represents the total cost incurred during that time period. In essence, it’s a visual representation of the total effect of a continuously changing variable.

2. The Trapezoidal Rule: A Simple Approximation Method



For curves that aren't easily integrated analytically (meaning we can't find a simple formula for the area), the trapezoidal rule offers a straightforward numerical approximation. This method divides the area under the curve into a series of trapezoids and sums their areas. The accuracy of the approximation increases as the number of trapezoids (and thus the width of each trapezoid) decreases.

How it works in Excel:

1. Data: Assume your x-values are in column A and corresponding y-values (representing the function) are in column B.
2. Trapezoid Width (h): Determine the width of each trapezoid. This is simply the difference between consecutive x-values (assuming they are evenly spaced for simplicity). If not, calculate the width for each individual trapezoid.
3. Area of each Trapezoid: The area of a trapezoid is given by (h/2) (y1 + y2), where y1 and y2 are the heights of the trapezoid (the y-values at the beginning and end).
4. Summation: In a separate column (e.g., column C), calculate the area of each trapezoid using the formula above. Finally, sum the values in column C to obtain the approximate total area under the curve.

Example:

Let's say we have the following data:

| x (Column A) | y (Column B) | Area (Column C) |
|---|---|---|
| 0 | 0 | |
| 1 | 1 | =0.5(B1+B2) |
| 2 | 4 | =0.5(B2+B3) |
| 3 | 9 | =0.5(B3+B4) |

The sum of values in column C would give the approximated area under the curve.


3. Using Excel's SUMPRODUCT Function for Efficiency



For larger datasets, the `SUMPRODUCT` function provides a more efficient way to implement the trapezoidal rule:

`=SUMPRODUCT((A2:A4-A1:A3)/2, (B1:B3+B2:B4))`

This formula directly calculates the sum of the trapezoidal areas without needing an intermediary column for individual trapezoid areas. Note how the ranges are adjusted to account for consecutive y-values. Remember to adjust the cell ranges to match your data.


4. Limitations and Refinements



The trapezoidal rule is an approximation. Its accuracy depends on the curve's shape and the number of trapezoids. For highly curved functions, using more trapezoids (smaller `h`) improves accuracy but increases calculation time. More sophisticated numerical integration methods, like Simpson's rule, exist for better accuracy but add complexity.


Actionable Takeaways:



The trapezoidal rule provides a simple yet effective way to approximate the area under a curve in Excel.
Use `SUMPRODUCT` for efficiency when dealing with large datasets.
The accuracy of the approximation improves with a larger number of trapezoids.
Consider more advanced numerical integration methods for greater precision with complex curves.


FAQs:



1. What if my x-values aren't evenly spaced? You'll need to calculate the width (`h`) for each trapezoid individually, using the difference between consecutive x-values. The formula for the area of each trapezoid will still apply.

2. Can I use this for curves below the x-axis? Yes. Areas below the x-axis will contribute negative values to the total sum, reflecting a negative accumulation.

3. Are there any built-in Excel functions for this? While there's no single function specifically for calculating the area under a curve, the `SUMPRODUCT` function along with the trapezoidal rule offers a very efficient solution.

4. What if my data is not represented as a continuous function? If you have discrete data points, the trapezoidal rule is still applicable. Just treat each pair of consecutive points as defining the vertices of a trapezoid.

5. When should I use more advanced methods? If high accuracy is crucial and you're dealing with highly complex curves, exploring more sophisticated numerical integration techniques (e.g., Simpson's rule, Gaussian quadrature) through specialized software or add-ins might be necessary. However, for most everyday applications, the trapezoidal rule in Excel provides sufficient accuracy.
