Bleeder Resistor Value

The Silent Guardian of Circuits: Understanding Bleeder Resistor Value

Imagine a massive water tower, suddenly losing its pressure. The sudden surge could cause catastrophic damage downstream. Similarly, in electronics, large capacitors store energy, and a sudden discharge can be just as devastating. This is where the humble bleeder resistor steps in, a silent guardian preventing dangerous voltage spikes and ensuring safe operation. But choosing the right bleeder resistor value is crucial. Let's delve into the fascinating world of bleeder resistors and understand how to select the appropriate resistance for your application.

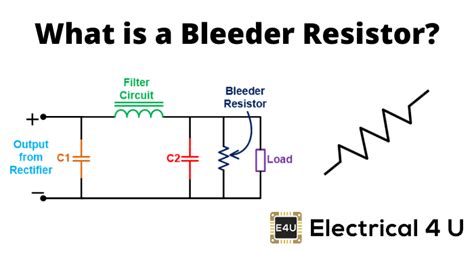

1. What is a Bleeder Resistor?

A bleeder resistor is a resistor connected across the terminals of a capacitor (or a capacitor bank) to slowly discharge it after the power is removed. This prevents hazardous voltage build-up, protects against accidental shocks, and ensures safe maintenance. Think of it as a controlled drain, slowly releasing the stored energy rather than allowing a sudden, potentially harmful release. It’s a crucial safety component, often overlooked but incredibly important.

2. How Does it Work?

Capacitors store electrical energy in an electric field between their plates. When a capacitor is charged, it holds this energy until it's discharged through a load. A bleeder resistor provides a path for this stored energy to slowly leak away. The resistor's value determines the discharge rate. A lower resistance value will result in a faster discharge, while a higher resistance value will result in a slower discharge. The process is governed by the fundamental equation of a resistor-capacitor (RC) circuit:

τ = R C

Where:

τ (tau) represents the time constant – the time it takes for the capacitor voltage to drop to approximately 37% of its initial value.
R is the resistance of the bleeder resistor (in ohms).
C is the capacitance of the capacitor (in farads).

The time constant directly impacts the discharge time. A smaller time constant means faster discharge, while a larger time constant indicates a slower discharge.

3. Determining the Appropriate Bleeder Resistor Value

Selecting the right bleeder resistor value involves careful consideration of several factors:

Capacitor Voltage: The higher the voltage across the capacitor, the more crucial a bleeder resistor becomes, and the lower the resistance value might need to be for faster discharge.

Capacitance Value: Larger capacitors store more energy and require a longer discharge time, potentially demanding a higher resistance value to prevent excessive current draw.

Discharge Time Requirement: The desired discharge time dictates the resistance value. A faster discharge might be needed for safety reasons, especially in high-voltage applications, while slower discharge might be acceptable in less critical situations.

Power Dissipation: The bleeder resistor dissipates power as heat during the discharge process. The resistor's power rating must be sufficient to handle this heat without overheating or damage. The power dissipated (P) can be calculated using the following formula:

P = V²/R

Where:

P is the power dissipated (in watts).
V is the voltage across the capacitor (in volts).
R is the resistance of the bleeder resistor (in ohms).

4. Real-Life Applications of Bleeder Resistors

Bleeder resistors find applications in a wide range of electronic circuits:

High-Voltage Power Supplies: Protecting technicians from dangerous high voltages during maintenance.
Television Sets (Older Models): Discharging the high-voltage capacitor in the flyback transformer, preventing shocks.
Industrial Control Systems: Ensuring safe shutdown and preventing unexpected voltage spikes in machinery.
Capacitor Banks in Power Systems: Safely discharging large capacitor banks used for power factor correction or energy storage.

5. Safety Considerations

When working with bleeder resistors, always prioritize safety:

Use Appropriately Rated Components: Choose resistors with sufficient power rating to prevent overheating and failure.
Double-Check Calculations: Carefully calculate the resistor value and power dissipation to ensure safe operation.
Follow Safety Procedures: Always disconnect the power source before working on any circuit containing capacitors.
Use Insulated Tools: Utilize insulated tools to avoid accidental shocks.

Conclusion

Bleeder resistors are unsung heroes in the world of electronics, silently safeguarding circuits and ensuring safety. Understanding their function, how to calculate their value, and the importance of power dissipation is crucial for designing safe and reliable electronic systems. Choosing the right bleeder resistor value involves a balance between fast enough discharge for safety and minimizing unnecessary power consumption. By carefully considering the factors discussed above, you can ensure that your circuits operate safely and efficiently.

FAQs

1. Can I use a lower-value bleeder resistor to discharge the capacitor faster? While a lower value will discharge faster, it will also draw more current, potentially leading to excessive heat and resistor failure. The resistor must be appropriately rated for the increased power dissipation.

2. What happens if I don't use a bleeder resistor? Leaving a capacitor charged poses a significant safety hazard, particularly in high-voltage applications. Accidental discharge can lead to electric shocks or damage to components.

3. Can I use a bleeder resistor with any type of capacitor? Yes, bleeder resistors are used with various capacitor types, including electrolytic, ceramic, and film capacitors. However, the discharge time will vary depending on the capacitor's capacitance and the resistor's value.

4. How do I calculate the power rating of the bleeder resistor? Use the formula P = V²/R. Always choose a resistor with a power rating significantly higher than the calculated value to ensure it can handle the heat generated during discharge.

5. What if the bleeder resistor fails? A failed bleeder resistor can render the safety mechanism ineffective, potentially leading to dangerous voltage build-up. Regular inspection and maintenance are crucial.
