Aggregation Relational Algebra

Beyond the Single Table: Understanding Aggregation Relational Algebra

Relational algebra forms the bedrock of relational database management systems (RDBMS). While fundamental operations like selection, projection, and join allow us to manipulate and combine data from different tables, they often fall short when we need to perform calculations like summing values, finding averages, or determining counts within groups of data. This is where aggregation relational algebra steps in, adding powerful capabilities to our data manipulation toolkit. Imagine needing to calculate the total sales for each product category from a sales database, or finding the average order value for a specific customer segment. These tasks necessitate operations beyond simple join and select operations, requiring the power of aggregation. This article will delve into the intricacies of aggregation relational algebra, providing both a theoretical understanding and practical applications.

1. The Aggregation Operators: Beyond the Basics

Standard relational algebra provides operators like σ (selection), π (projection), × (Cartesian product), ⋈ (join), etc. Aggregation extends this with operators that perform calculations on groups of tuples (rows). The most crucial aggregation operator is the grouping operator, denoted as γ (gamma). γ takes two arguments:

Grouping attributes (G): Attributes on which to group the data. This is analogous to the `GROUP BY` clause in SQL.
Aggregate functions (F): Functions applied to each group. Common aggregate functions include:
SUM: Calculates the sum of a numeric attribute.
AVG: Computes the average of a numeric attribute.
COUNT: Counts the number of tuples in a group.
MIN: Finds the minimum value of an attribute.
MAX: Finds the maximum value of an attribute.

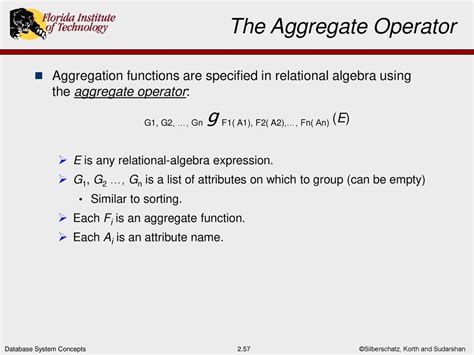

The general form of the γ operator is: `γG, F(A)(R)` where R is a relation, G is a set of grouping attributes, A is the attribute on which the aggregate function F operates.

2. Illustrative Examples: Putting it into Practice

Let's consider a simple sales database with a relation `Sales(ProductID, ProductCategory, SalesAmount, Quantity)`:

| ProductID | ProductCategory | SalesAmount | Quantity |
|---|---|---|---|
| 1 | Electronics | 100 | 1 |
| 2 | Clothing | 50 | 2 |
| 3 | Electronics | 150 | 1 |
| 4 | Clothing | 75 | 3 |
| 5 | Books | 25 | 1 |
| 6 | Books | 30 | 2 |

Example 1: Total Sales per Category:

To calculate the total sales for each product category, we use the γ operator as follows:

`γProductCategory, SUM(SalesAmount)(Sales)`

This would produce a relation with two attributes: `ProductCategory` and `SUM(SalesAmount)`, showing the total sales for each category.

Example 2: Average Sales Amount per Product Category:

To find the average sales amount for each product category:

`γProductCategory, AVG(SalesAmount)(Sales)`

This yields a relation with `ProductCategory` and the average `SalesAmount` for each.

Example 3: Number of Products in Each Category:

To count the number of products in each category:

`γProductCategory, COUNT()(Sales)`

Here, `COUNT()` counts all tuples within each category group.

3. Combining Aggregation with Other Operators: The Power of Composition

The real power of aggregation emerges when combined with other relational algebra operators. For example, we might want to find the average sales amount only for electronic products sold in quantities greater than 1. This involves a sequence of operations:

1. Selection: Select sales records where `Quantity > 1` (σQuantity>1(Sales))
2. Selection: Select only Electronics category (σProductCategory='Electronics'(...))
3. Aggregation: Calculate the average sales amount (γProductCategory, AVG(SalesAmount)(...))

This shows how composing aggregation with selection allows for complex data analysis.

4. Handling Null Values: A Practical Consideration

Aggregate functions often need to handle null values. The behavior varies across different database systems and implementations of relational algebra. `COUNT()` usually counts all rows, including those with null values. However, `SUM`, `AVG`, `MIN`, and `MAX` typically ignore null values. Understanding how nulls are handled is critical for accurate results.

5. Limitations and Extensions

While aggregation extends relational algebra significantly, it does have limitations. It doesn't inherently support nested aggregation (aggregating within aggregates easily) or complex window functions as directly found in SQL. Extended relational algebra often incorporates these capabilities to provide greater expressiveness.

Conclusion

Aggregation relational algebra provides a powerful framework for performing calculations and summaries on grouped data within a relational database context. By understanding the γ operator and its interaction with other relational algebra operators, you can perform sophisticated data analyses. Remembering to consider the handling of null values and potential limitations is key to using aggregation effectively. The ability to combine aggregation with selection, projection, and join unlocks a vast array of possibilities for extracting meaningful insights from your data.

FAQs

1. What is the difference between `COUNT()` and `COUNT(attribute)`? `COUNT()` counts all rows in a group, including those with null values. `COUNT(attribute)` counts only rows where the specified attribute is not null.

2. Can I use multiple aggregate functions in a single γ operator? Yes, you can apply multiple aggregate functions simultaneously within a single γ operator. For example: `γProductCategory, SUM(SalesAmount), AVG(SalesAmount)(Sales)`

3. How does aggregation relate to SQL? The γ operator directly corresponds to the `GROUP BY` clause and aggregate functions in SQL.

4. What are some real-world applications of aggregation relational algebra? Business intelligence (BI) reporting, data warehousing, online analytical processing (OLAP), financial analysis, and scientific data analysis.

5. Are there any alternatives to aggregation relational algebra? While relational algebra forms the basis, many database systems provide more advanced features and extensions that go beyond the core concepts, such as window functions and hierarchical queries, to address the limitations of basic aggregation.
