Adder Block Diagram

Decoding the Adder: A Deep Dive into Block Diagrams and Applications

Digital electronics forms the backbone of our modern world, quietly powering everything from smartphones to spacecraft. At the heart of many digital circuits lies a fundamental building block: the adder. While seemingly simple in concept – adding two numbers – the underlying implementation and intricacies of adder circuits are surprisingly rich and worthy of exploration. This article aims to provide a comprehensive understanding of adder block diagrams, their various types, and their crucial role in digital systems. We'll move beyond superficial descriptions to delve into the practical implications and design considerations.

1. Understanding the Basics: Binary Addition and its Implications

Before diving into block diagrams, let's refresh our understanding of binary addition. Unlike decimal addition, binary addition operates on only two digits: 0 and 1. The rules are straightforward:

0 + 0 = 0
0 + 1 = 1
1 + 0 = 1
1 + 1 = 10 (This represents 2 in decimal, requiring a carry)

This seemingly simple operation is the foundation upon which all arithmetic operations in digital systems are built. The carry bit, generated when the sum exceeds the maximum value representable by a single bit (1), is crucial for handling multi-bit addition.

2. The Half Adder: A Simple Beginning

The simplest form of an adder is the half adder. Its block diagram is concise:

```
+-------+ +---+---+
|Input A|---->| |Sum|----
+-------+ | +---+
|Input B|---->| |Carry|---
+-------+ +---+---+
```

A half adder only accepts two single-bit inputs (A and B) and produces two outputs: the sum (S) and the carry (C). The truth table defining its operation is:

| A | B | S | C |
|---|---|---|---|
| 0 | 0 | 0 | 0 |
| 0 | 1 | 1 | 0 |
| 1 | 0 | 1 | 0 |
| 1 | 1 | 0 | 1 |

Its logic can be implemented using a single XOR gate for the sum (S = A XOR B) and a single AND gate for the carry (C = A AND B). However, the half adder has a limitation: it cannot handle carry-in from a previous stage of addition, making it unsuitable for multi-bit addition.

3. The Full Adder: Handling Carry-in

The full adder addresses the limitations of the half adder by incorporating a carry-in (Cin) input. Its block diagram is:

```
+-------+ +---+---+
|Input A|---->| |Sum|----
+-------+ | +---+
|Input B|---->| |Carry|---
+-------+ | +---+
|Carry in|----| | |
+-------+ +---+---+
```

The full adder takes three single-bit inputs (A, B, and Cin) and produces two outputs: the sum (S) and the carry-out (Cout). The truth table is more extensive:

| A | B | Cin | S | Cout |
|---|---|-----|---|------|
| 0 | 0 | 0 | 0 | 0 |
| 0 | 0 | 1 | 1 | 0 |
| 0 | 1 | 0 | 1 | 0 |
| 0 | 1 | 1 | 0 | 1 |
| 1 | 0 | 0 | 1 | 0 |
| 1 | 0 | 1 | 0 | 1 |
| 1 | 1 | 0 | 0 | 1 |
| 1 | 1 | 1 | 1 | 1 |

A full adder can be implemented using two half adders and an OR gate. This allows cascading multiple full adders to perform multi-bit addition.

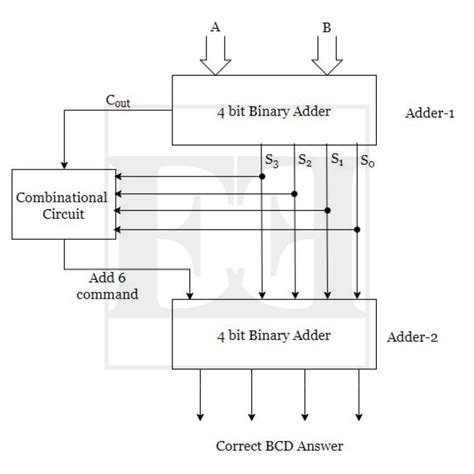

4. Ripple Carry Adder: Adding Multiple Bits

To add numbers with more than one bit, we cascade full adders. This arrangement is known as a ripple carry adder. Each full adder's carry-out becomes the next full adder's carry-in. The delay in this configuration is proportional to the number of bits being added, as the carry ripples through the chain. This delay becomes significant for large numbers of bits.

5. Carry Lookahead Adder: Overcoming Ripple Carry Limitations

The ripple carry adder's delay is a major drawback for high-speed applications. Carry lookahead adders address this limitation by calculating the carry bits concurrently rather than sequentially. They use logic gates to predict the carry bits in advance, significantly reducing the overall delay. The block diagram is more complex, involving more gates and intricate logic, but it leads to much faster addition.

6. Real-world Applications: From Microprocessors to Space Exploration

Adders are fundamental to numerous applications. Microprocessors rely on adders for arithmetic logic unit (ALU) operations, forming the core of computation. Digital signal processors (DSPs) use adders extensively for signal processing tasks. Even in seemingly unrelated fields like space exploration, adders are crucial for navigation calculations and data processing within spacecraft computers.

Conclusion

Understanding adder block diagrams is crucial for grasping the inner workings of digital systems. While the half adder provides a basic understanding, the full adder and its configurations, particularly the carry lookahead adder, are vital for high-performance applications. The evolution from simple ripple carry adders to more sophisticated designs highlights the ongoing quest for efficiency and speed in digital electronics.

FAQs:

1. What is the difference between a half adder and a full adder? A half adder adds two bits without considering a carry-in, while a full adder includes a carry-in input, making it suitable for multi-bit addition.

2. Why are carry lookahead adders faster than ripple carry adders? Carry lookahead adders predict carry bits concurrently, eliminating the sequential delay inherent in ripple carry adders.

3. Can adders be used for subtraction? Yes, subtraction can be implemented using adders and a technique called two's complement arithmetic.

4. What are some other types of adders besides ripple carry and carry lookahead? Other types include carry-save adders, carry-select adders, and conditional sum adders, each with its own trade-offs in speed and complexity.

5. How does the number of bits affect the complexity of an adder circuit? The number of bits directly influences the number of full adders required in a ripple carry adder or the complexity of the carry prediction logic in a carry lookahead adder. The delay also increases with the number of bits.
