Understanding "90 Degrees Out of Phase": A Simple Explanation



In the world of waves and oscillations, whether it's sound waves, light waves, or alternating current (AC) electricity, the concept of "phase" plays a crucial role. Understanding phase relationships is essential for grasping many physical phenomena and engineering applications. One particularly important relationship is when two waves are 90 degrees out of phase. This article will demystify this concept, breaking it down into digestible parts using analogies and relatable examples.

1. What are Waves and Phase?



Imagine dropping a pebble into a still pond. Ripples spread outwards, forming concentric circles. These circles represent a wave. A wave is a disturbance that travels through space and time, transferring energy without necessarily transferring matter. Every point on a wave has a specific position and a specific time. "Phase" describes the position of a point on the wave relative to a reference point, often the starting point. We usually measure phase in degrees, with a complete cycle of the wave being 360 degrees.

2. What does "90 Degrees Out of Phase" Mean?



When two waves are 90 degrees out of phase, it means that one wave is one-quarter of a cycle ahead or behind the other. Think of it like two runners on a circular track. If they are 90 degrees out of phase, when one runner is at the starting line, the other is a quarter of the way around the track. One wave's peak (highest point) aligns with the other wave's zero-crossing (the point where the wave crosses the horizontal axis), and vice-versa. This 90-degree difference is fundamental because it represents a specific temporal and spatial offset between the two waves.


3. Visualizing 90 Degrees Out of Phase

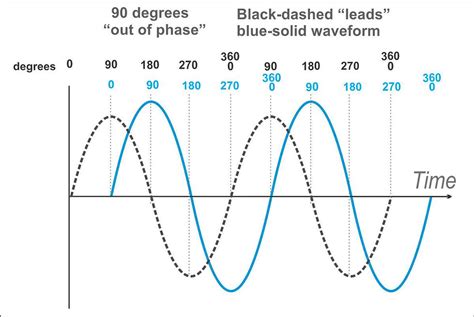

Imagine two sine waves plotted on a graph. A sine wave is a smooth, repetitive oscillation. If these two waves are 90 degrees out of phase, their peaks and troughs will not align. Instead, the peak of one wave will correspond to the zero-crossing of the other, and vice-versa. This visual representation clearly demonstrates the quarter-cycle shift. You can easily visualize this using graphing software or even by hand-drawing two sine waves with a deliberate offset.


4. Practical Examples of 90-Degree Phase Shifts



AC Circuits: In an AC circuit containing both resistance and capacitance (or inductance), the voltage and current are typically 90 degrees out of phase. The voltage across a capacitor lags the current by 90 degrees, while the voltage across an inductor leads the current by 90 degrees. This phase difference influences the circuit's impedance and power factor.

Sound Waves: Though less directly observable, 90-degree phase shifts can occur in sound wave interference. If two sound waves of the same frequency arrive at a point with a 90-degree phase difference, the resulting sound intensity will be different than if they were in phase or completely out of phase (180 degrees).

Light Waves: Polarized light demonstrates a phase difference. Two linearly polarized light waves with their polarization axes at a 90-degree angle are essentially 90 degrees out of phase. This is used in various optical applications, such as liquid crystal displays (LCDs).

5. Consequences and Applications



The 90-degree phase shift has significant consequences. In AC circuits, it impacts power calculations and necessitates the use of power factor correction to minimize energy losses. In wave interference, it affects the resulting amplitude and intensity. Understanding this phase relationship is crucial for designing efficient electrical systems, predicting wave behavior, and developing advanced optical technologies.


Key Insights:



A 90-degree phase shift represents a quarter-cycle difference between two waves.
This phase difference significantly impacts the combined effect of waves, whether in electrical circuits or wave interference phenomena.
Understanding phase shifts is essential in various fields, including electrical engineering, acoustics, and optics.


FAQs:



1. Q: Can phase difference be expressed in radians instead of degrees? A: Yes, 90 degrees is equivalent to π/2 radians. Radians are often preferred in advanced physics and engineering calculations.

2. Q: What happens if waves are 180 degrees out of phase? A: If two waves are 180 degrees out of phase, they are completely out of sync. Their peaks and troughs align perfectly but with opposite signs, resulting in destructive interference (cancellation).

3. Q: How can I measure the phase difference between two waves? A: Specialized electronic instruments like oscilloscopes can measure the time difference between corresponding points on two waveforms, which can then be converted to a phase difference.

4. Q: Are there phase shifts other than 90 degrees? A: Yes, waves can be out of phase by any angle between 0 and 360 degrees. Each angle represents a different degree of synchronization or offset.

5. Q: Is the concept of "90 degrees out of phase" only relevant for sine waves? A: While sine waves are frequently used for illustration, the concept of phase difference applies to any periodic wave, although the mathematical description might be more complex.
