Dissecting the 802.11 Data Frame: A Deep Dive into Wireless Communication

Wireless communication, a cornerstone of modern life, relies heavily on the IEEE 802.11 standard. At the heart of this standard lies the 802.11 data frame, the fundamental unit of data transmission over Wi-Fi networks. This article provides a comprehensive overview of the 802.11 data frame, exploring its structure, fields, and significance in enabling reliable wireless connectivity.

1. The Frame Structure: A Hierarchical View

The 802.11 data frame is a complex structure, organized into several distinct fields. These fields provide crucial information for addressing, routing, error detection, and data integrity. The frame can be broadly divided into two sections: MAC header and payload. The MAC header contains control information necessary for proper transmission and reception, while the payload carries the actual data being transmitted. The exact structure and length of fields can vary depending on the frame type and optional features used.

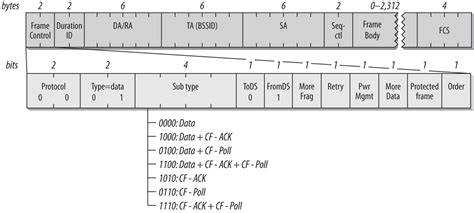

A typical 802.11 frame structure includes:

Frame Control: Specifies the frame type (e.g., data, management, control), subtype, protocol version, and various control bits indicating things like fragmentation and retry sequences.
Duration/ID: Indicates the duration of the transmission or acts as a sequence number for fragmented frames.
Receiver Address (RA): The MAC address of the intended recipient of the frame.
Transmitter Address (TA): The MAC address of the device sending the frame.
BSSID (Basic Service Set Identifier): The MAC address of the access point (AP) associated with the wireless network.
Sequence Control: This field contains the sequence number and fragment number, crucial for ordering and reassembling fragmented frames.
Address 4 (Optional): Can be used for various purposes, such as specifying a secondary recipient or a source port.
QoS Control (Optional): Used for Quality of Service (QoS) information, prioritizing certain types of traffic.
HT Control (Optional): Contains information specific to 802.11n/ac/ax (High Throughput) technologies.
Payload: The actual data being transmitted. This can range from a few bytes to several kilobytes.
Frame Check Sequence (FCS): A cyclic redundancy check (CRC) value used for error detection.

2. Frame Types and Subtypes: Diverse Functionality

802.11 frames are categorized into several types, each serving a distinct purpose within the wireless communication process. These types include management, control, and data frames.

Management frames: Used for network configuration and control. Examples include association requests/responses (connecting to an AP), authentication requests/responses, and beacon frames (advertising AP capabilities).
Control frames: Used to coordinate data transmission and handle low-level communication tasks. Examples include RTS/CTS (Request to Send/Clear to Send) frames for collision avoidance and ACK (Acknowledgment) frames to confirm successful reception.
Data frames: Carry the actual user data. They can be further categorized into subtypes based on QoS requirements and other specific functionalities.

3. Fragmentation and Reassembly: Handling Large Data Packets

Large data packets can exceed the maximum transmission unit (MTU) of the wireless medium. To handle this, the 802.11 standard employs fragmentation. A large data packet is divided into smaller fragments, each transmitted as a separate data frame. The receiver then reassembles these fragments into the original data packet using the sequence control field. This process ensures reliable transmission of large data amounts even under less-than-ideal wireless conditions.

4. Error Detection and Correction: Ensuring Data Integrity

Data transmission over a wireless medium is susceptible to noise and interference. To ensure data integrity, the 802.11 frame incorporates the FCS field. This field contains a CRC value calculated from the entire frame (excluding FCS itself). The receiver recalculates the CRC and compares it to the received value. If they match, the frame is considered error-free; otherwise, it's discarded. While 802.11 primarily relies on error detection, some advanced techniques like ARQ (Automatic Repeat reQuest) handle error correction by requesting retransmission of corrupted frames.

5. Practical Implications and Applications

Understanding the 802.11 data frame structure is crucial for network administrators, software developers, and anyone working with wireless communication systems. It allows for troubleshooting network issues, optimizing network performance, and developing applications that leverage the specific capabilities of the Wi-Fi standard. For instance, analyzing frame captures (packet captures) using tools like Wireshark can provide valuable insights into network traffic, identify bottlenecks, and pinpoint the source of connectivity problems.

Summary

The 802.11 data frame is the fundamental building block of wireless communication within the 802.11 standard. Its intricate structure, encompassing various fields for addressing, control, and data integrity, ensures reliable and efficient data transmission over wireless networks. Understanding its components, functions, and limitations is vital for anyone involved in designing, deploying, or troubleshooting wireless networks.

FAQs

1. What is the difference between a management frame and a data frame? Management frames are used for network control and configuration (e.g., authentication, association), while data frames carry the actual user data.

2. How does fragmentation improve wireless performance? Fragmentation breaks large packets into smaller ones, reducing the impact of errors and improving the chances of successful transmission, especially in noisy environments.

3. What is the role of the FCS field? The FCS field (Frame Check Sequence) provides error detection by using a CRC algorithm to verify data integrity.

4. Can I see 802.11 frames in action? Yes, network monitoring tools like Wireshark allow you to capture and analyze 802.11 frames in real-time, revealing detailed information about network traffic.

5. How does QoS affect 802.11 data frames? QoS (Quality of Service) mechanisms can prioritize certain types of traffic by adding specific fields to the data frame, ensuring that time-sensitive data (e.g., voice or video) receives preferential treatment.
