Decoding the Mystery of 8-Bit Two's Complement

The digital world thrives on representing everything – numbers, characters, images – as binary digits (bits), the fundamental building blocks of computation. While representing positive numbers is straightforward, efficiently handling negative numbers requires a clever technique: two's complement. This article delves into the intricacies of 8-bit two's complement representation, a cornerstone of many embedded systems and low-level programming. Understanding it is crucial for anyone working with microcontrollers, digital signal processing, or low-level hardware interactions. Imagine trying to build a simple calculator that handles both positive and negative values within a limited memory space – this is where the power of two's complement shines.

1. Understanding Binary Representation

Before diving into two's complement, let's refresh our understanding of binary. In decimal (base-10), we use powers of 10 (1, 10, 100, 1000, etc.). In binary (base-2), we use powers of 2 (1, 2, 4, 8, 16, 32, 64, 128...). An 8-bit number can represent 2⁸ = 256 different values. In unsigned representation, these values range from 0 to 255. But how do we incorporate negative numbers? This is where two's complement comes in.

2. The Two's Complement Method

Two's complement cleverly uses the most significant bit (MSB) as a sign bit. If the MSB is 0, the number is positive; if it's 1, the number is negative. The remaining bits represent the magnitude of the number, but not directly. Here's how to find the two's complement representation of a negative number:

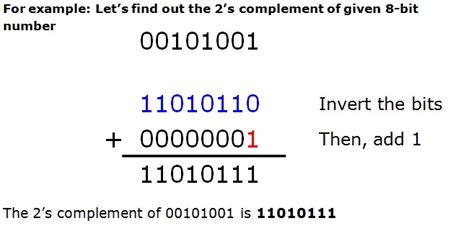

1. Find the binary representation of the positive number: Let's take -5 as an example. The binary representation of 5 is 00000101.

2. Invert the bits (one's complement): Change all 0s to 1s and 1s to 0s. This gives us 11111010.

3. Add 1: Add 1 to the result from step 2. 11111010 + 1 = 11111011. This is the two's complement representation of -5.

3. Decoding Two's Complement

Decoding a two's complement number is equally straightforward:

1. Check the MSB: If the MSB is 1, the number is negative. If it's 0, the number is positive.

2. If negative, find the two's complement: Perform the two's complement operation again (invert the bits and add 1) to obtain the positive equivalent. For example, starting with 11111011, we invert (00000100) and add 1 (00000101), revealing -5.

3. If positive, interpret directly: If the MSB is 0, the number is interpreted directly as its binary representation.

4. Range and Overflow

An 8-bit two's complement system can represent numbers from -128 to +127. The range is asymmetric because 0 counts as a positive number. The highest positive value is 01111111 (127), and the lowest negative value is 10000000 (-128). Adding or subtracting numbers might lead to overflow, resulting in incorrect values if the result falls outside this range. For instance, adding 127 + 1 yields -128, illustrating a wrap-around effect.

5. Real-World Applications

Two's complement is ubiquitous in computer architectures. Microcontrollers, digital signal processors (DSPs), and many other embedded systems rely on it for arithmetic operations. Consider a temperature sensor that outputs a signed value. Two's complement allows the sensor to report both positive and negative temperatures using a fixed number of bits, efficiently representing the data within memory constraints. Similarly, audio processing often involves signed values, and two's complement plays a crucial role in representing and manipulating these audio signals.

6. Advantages of Two's Complement

The elegance of two's complement lies in its simplicity and efficiency:

Single representation for zero: There's only one representation for zero (00000000).
Simplified arithmetic: Addition and subtraction operations are identical regardless of the signs of the operands; this is a significant advantage for hardware implementation.
Efficient hardware implementation: Two's complement significantly simplifies the design of arithmetic logic units (ALUs) in processors, reducing complexity and cost.

Conclusion

Understanding 8-bit two's complement is fundamental for anyone delving into low-level programming or embedded systems. Its efficient handling of signed numbers, simplified arithmetic, and hardware-friendly nature make it a cornerstone of modern computing. This article explored the method's mechanics, its implications for range and overflow, and its relevance to real-world applications. Mastering two's complement unlocks a deeper understanding of how computers represent and manipulate numerical data.

FAQs:

1. Why is two's complement preferred over other methods for representing signed numbers (like sign-magnitude)? Two's complement simplifies arithmetic operations, as addition and subtraction are performed using the same hardware circuitry. Sign-magnitude requires separate circuits for positive and negative operations, increasing complexity.

2. What happens if I try to represent a number outside the range of -128 to 127 in an 8-bit two's complement system? You'll experience overflow. The result will wrap around; for instance, adding 1 to 127 will result in -128.

3. How can I convert a decimal number directly into its 8-bit two's complement representation without going through the intermediate steps? There are algorithms and techniques available for this, often utilizing bitwise operations and modular arithmetic.

4. Is two's complement only used with 8 bits? No, it's applicable to any number of bits (16-bit, 32-bit, etc.), scaling the range accordingly. The principles remain the same.

5. How does two's complement affect bitwise operations (AND, OR, XOR)? Bitwise operations are performed on each bit independently, regardless of the two's complement interpretation. However, understanding the signed nature of the operands is crucial for interpreting the results.
